GXF 200 Laser Marker

  • Finance as low as $306/Month

Application Industry:

Mark on metal surface and some non-metal material surface, especially suited to some processing and manufacturing with high precision required. Such as the electrical components, hardware, tools, integrated circuit(IC), electric appliance, mobile communication, precise machinery, glass frames, clocks and watches, decorations, automotive accessories, plastic buttons, construction material, PVC pipes and medical instrument. Recommend to apply to the textile and cloth, metal accessories, plastic accessories, ceramic, stone, and wood products.

Application Material:

Common metal and alloy (iron, copper, aluminum, magnesium, zinc, etc. all metals), rare metal and alloy (gold, silver, titanium), metal oxide (all kinds), special surface treatment materials (phosphating, aluminum annihilated, plating surface), ABS material (electric appliance shell, daily necessities), printing ink (euphotic buttons, printing products), epoxy resin (encapsulation and insulating layer of electronic components )

Machine Photo Gallery

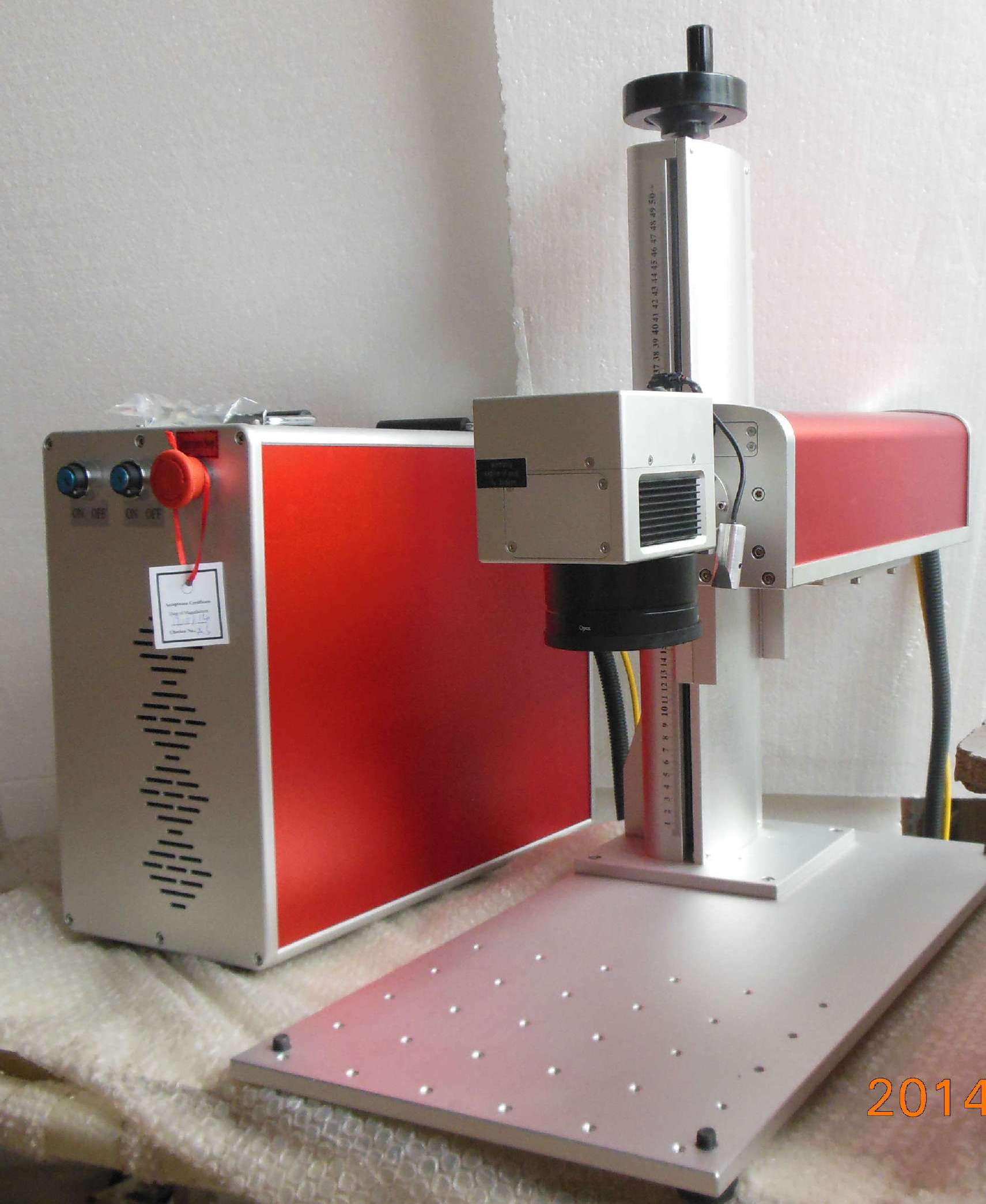

GXF 200 Laser Marker Image 1

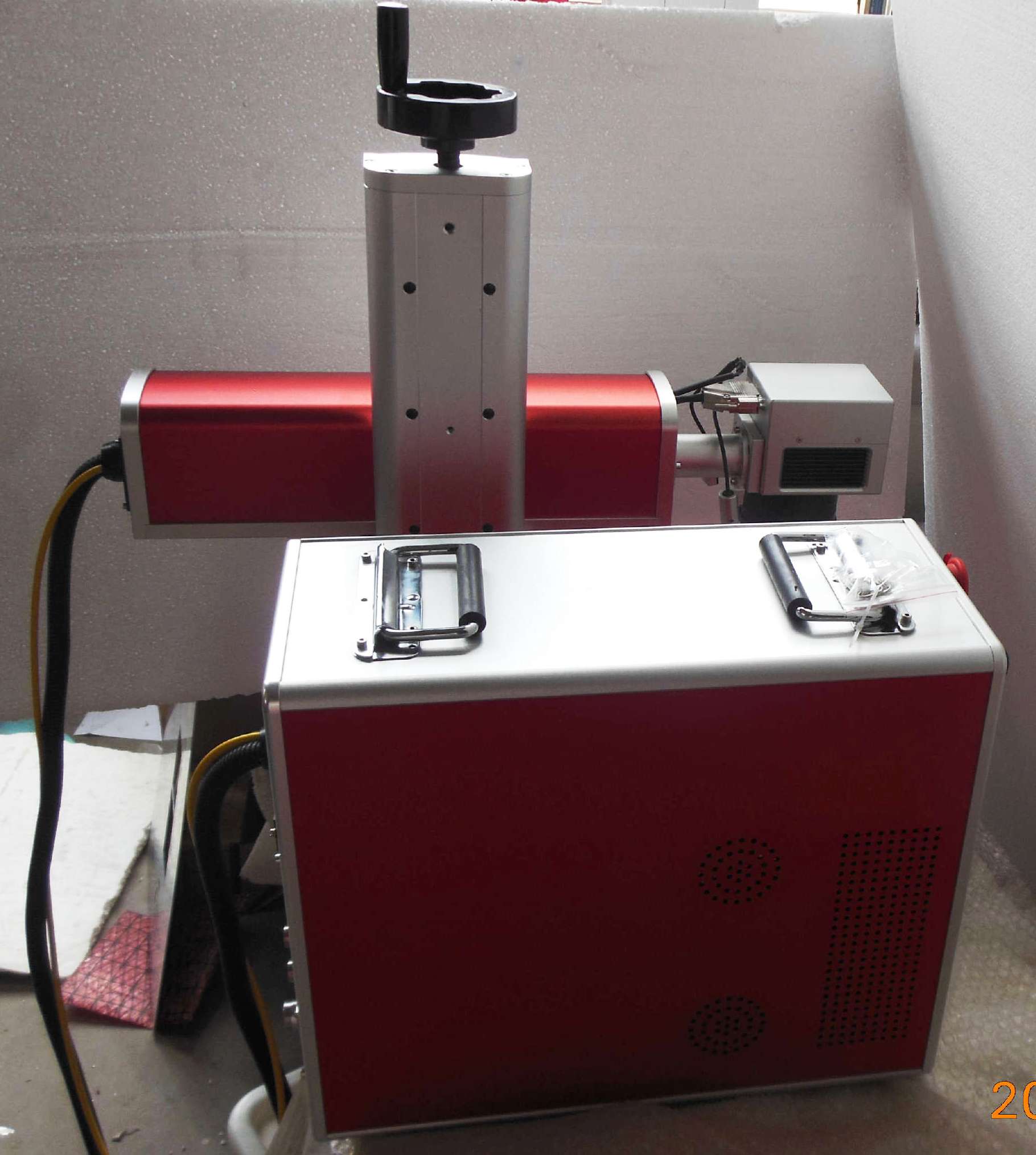

GXF 200 Laser Marker Image 2
GXF 200 Laser Marker

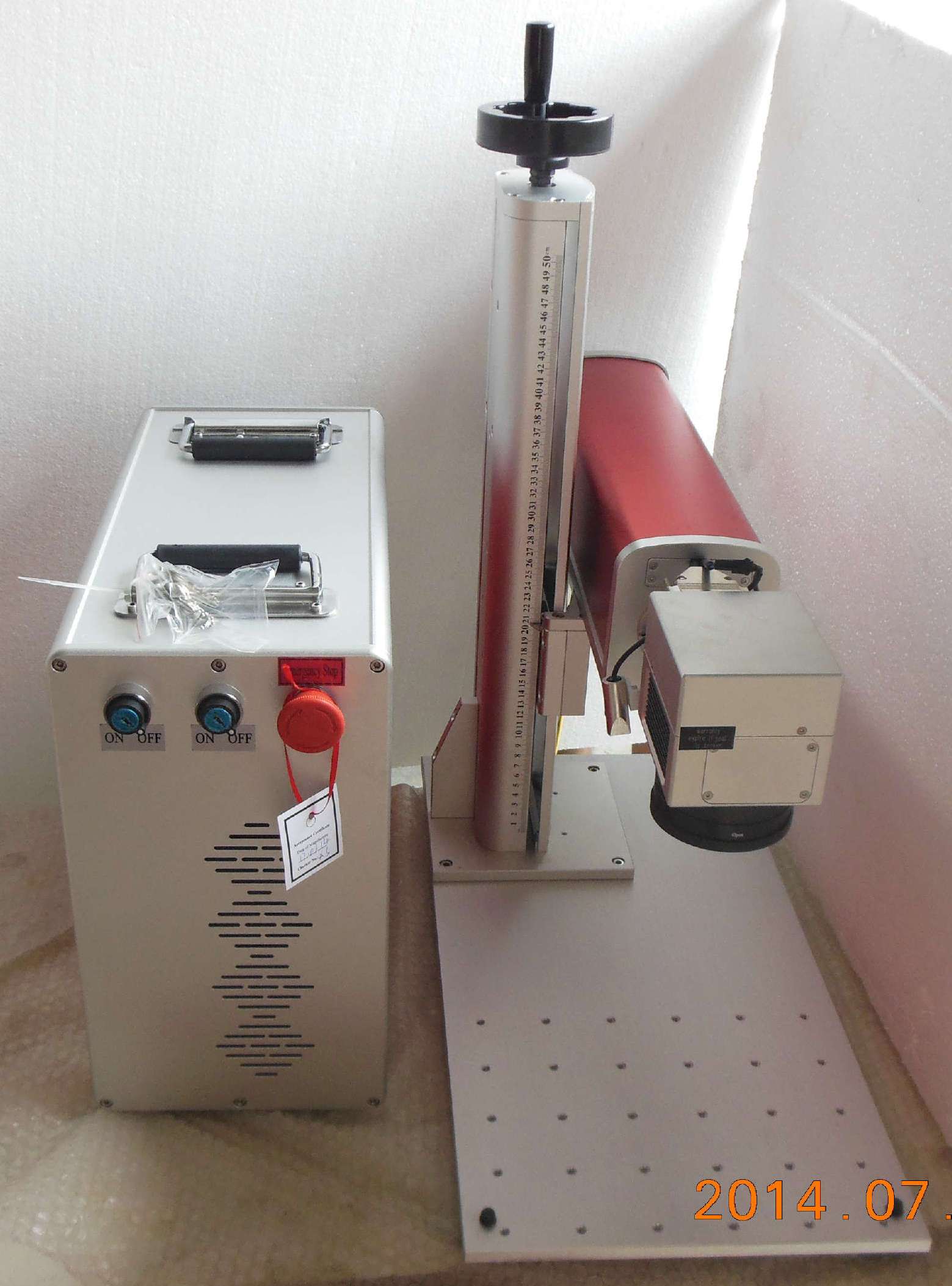

GXF 200 Laser Marker Image 3
GXF 200 Laser Marker

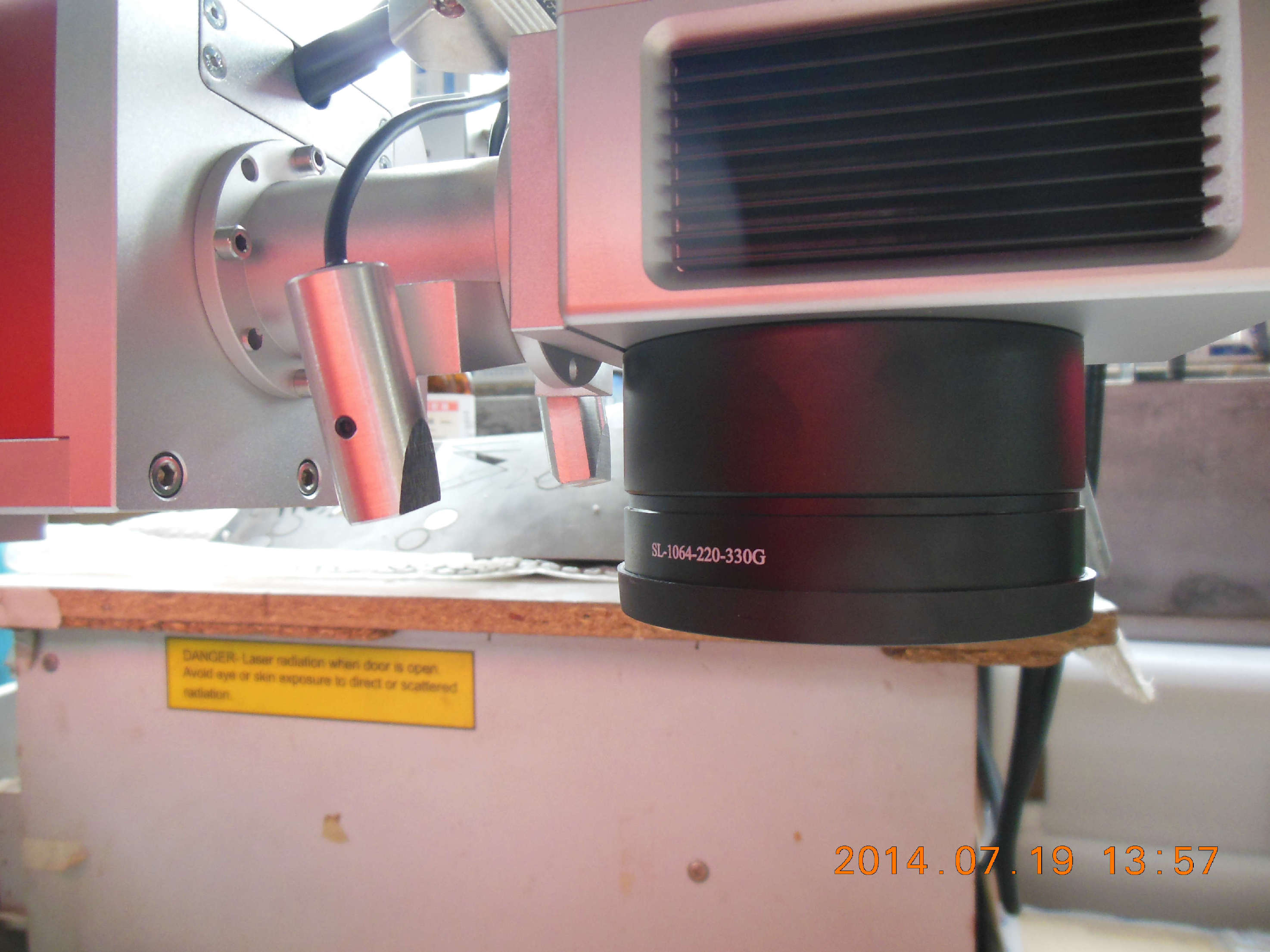

GXF 200 Laser Marker Image 4
GXF 200 Laser Marker

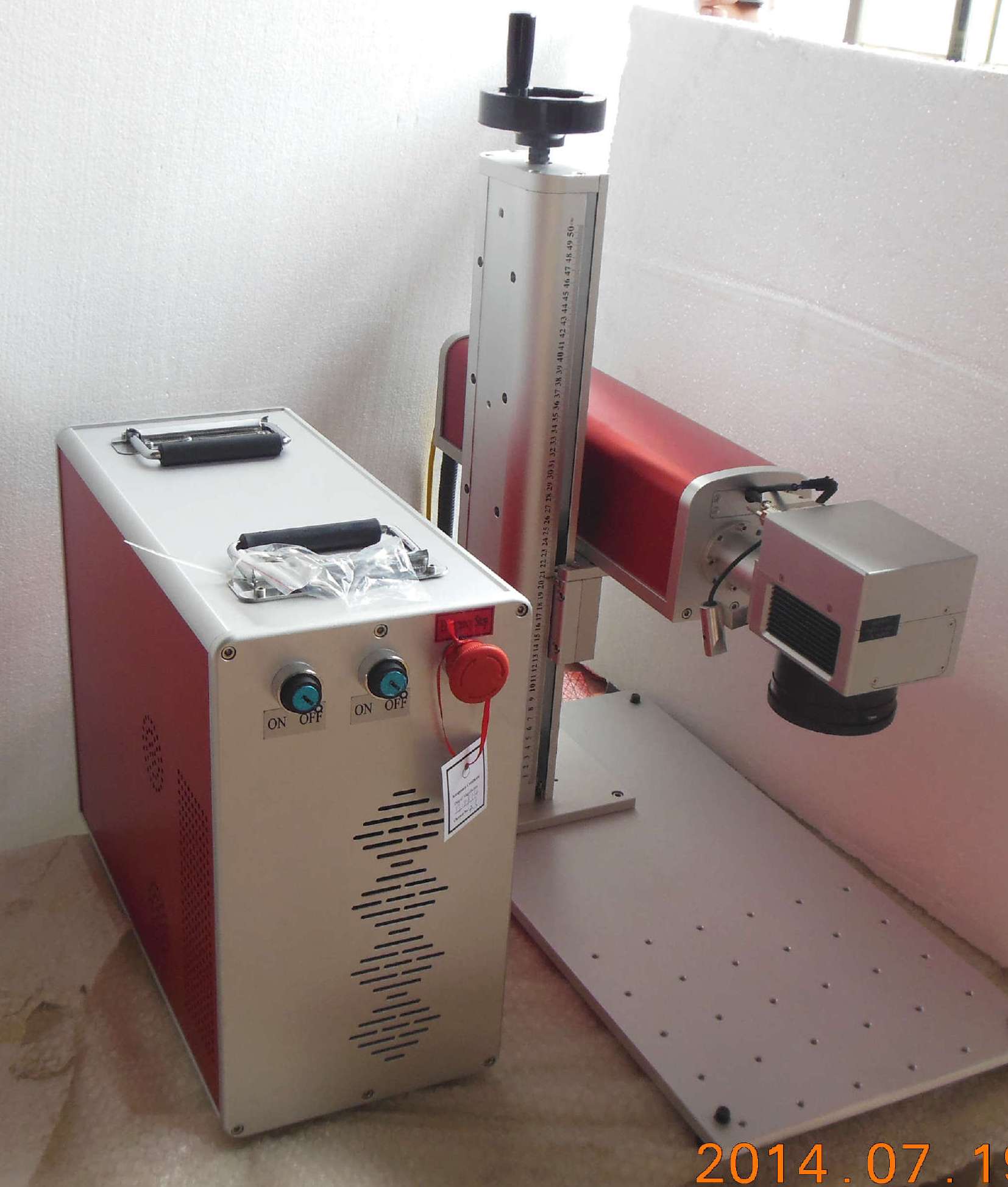

GXF 200 Laser Marker Image 5
GXF 200 Laser Marker

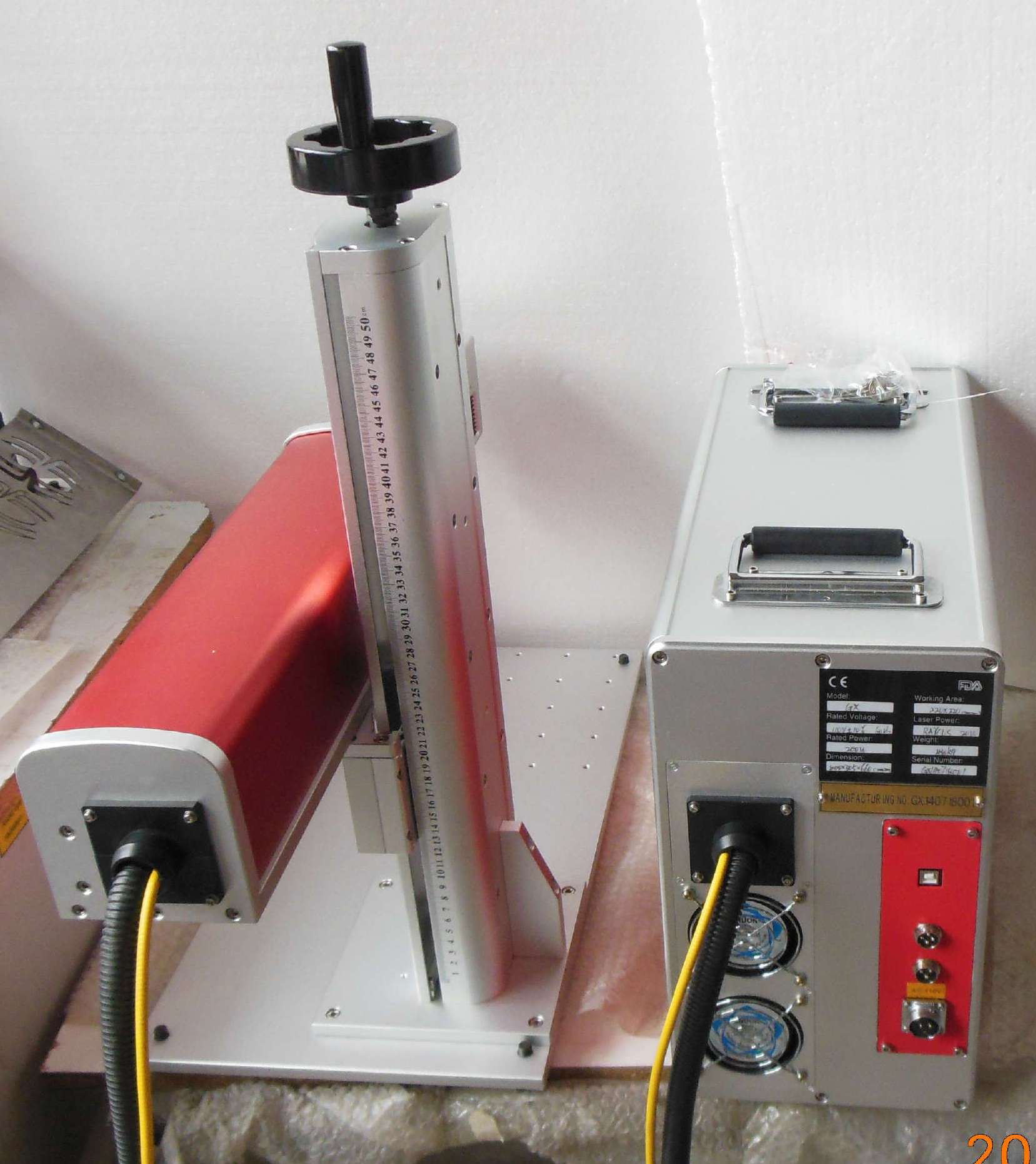

GXF 200 Laser Marker Image 6
GXF 200 Laser Marker

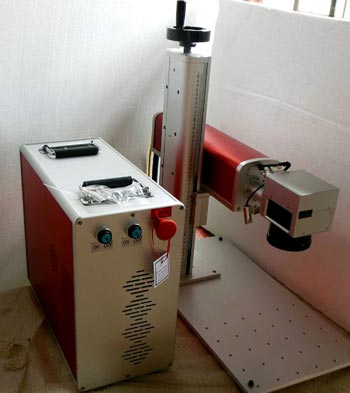

GXF 200 Laser Marker Image 7
GXF 200 Laser Marker

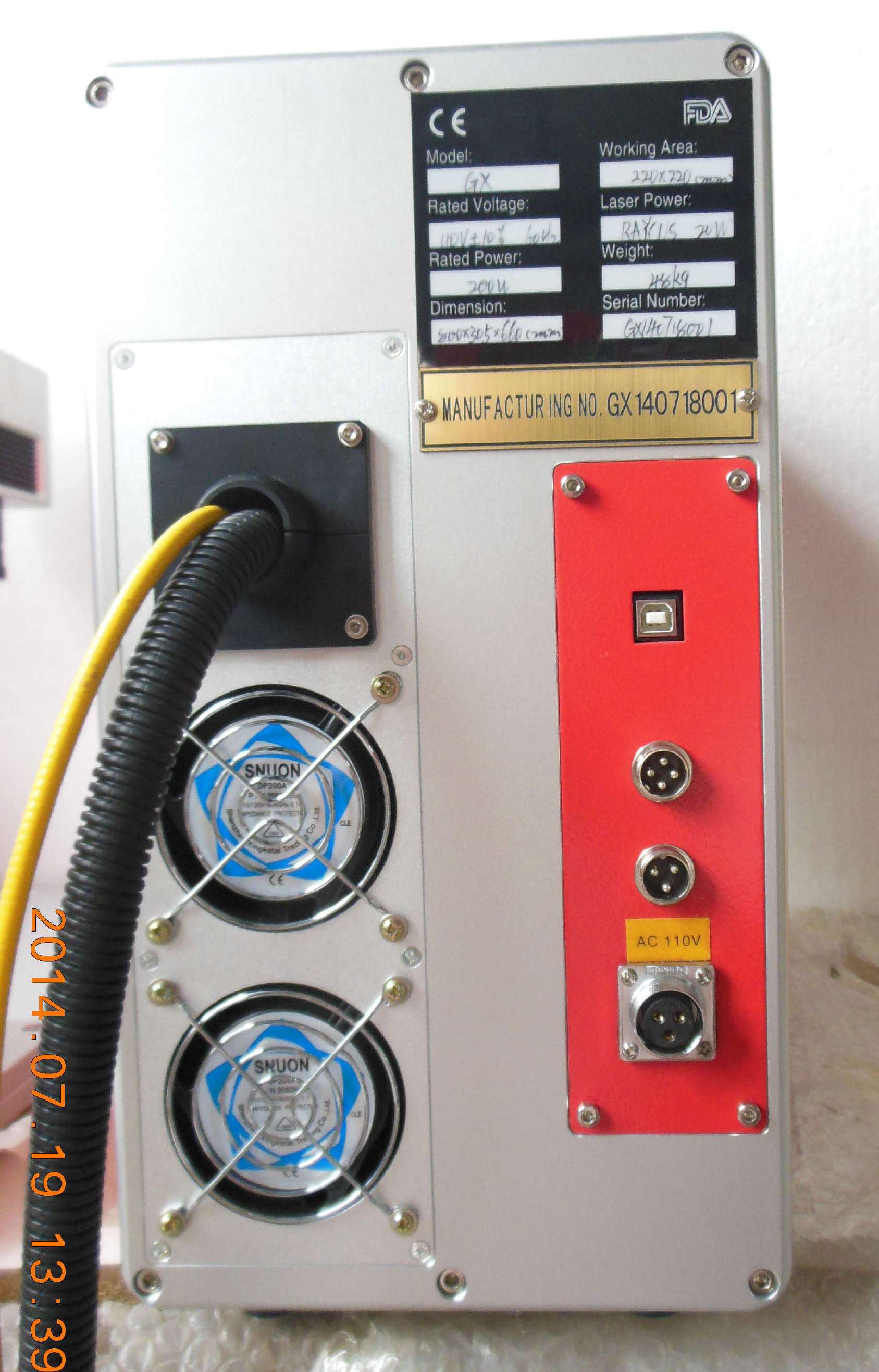

GXF 200 Laser Marker Image 8



Machine Specifications for our GXF 200 Series Laser

Engraver / Cutter






Model

GXF 200





Marking scope

200x200mm,300x300mm,
400x400mm, optional)

Max. laser average power

20W Standard
30W Optional

Min. Marking line width

0.015mm

Max. Marking depth

0.3mm

Beam quality m2

<6

Wavelength

1064 nm

Min character size

0.2mm

Marking speed

≤3000mm/s

Repetition precision

±0.002mm

Repeat frequency

30KHz

Software system

Win XP/7/8 32/64 +
EZCAD marker system

Optical system

40 x 1,110 x 1,200mm

Cooling style

Air cooling

Power consumption

500kw

Supply voltage

AC220±10% 60Hz, 2A

Operating temperature

5℃—40℃, No Condensation, No Icing

N.W.

GXF 200:        35KG
GXF 200:        50KG

Machine Size

720*285*535MM
800*305*650MM

G.W.

GXF 200: 45KG
GXF 200:        65KG

Packing Size

800*390*700MM
890*410*800MM
