300 Series 40W Laser Engraver / Cutter
- Only $3,500 For more details Click Here
- Finance as low as $82/month.
Our 300 Series Line of laser engravers and cutting equipment offers you the best value coupled with high quality workmanship. All laser engravers and cutters comes with a manufacturer's Two year warranty plus service and support from our US-based team of experts.
The 300 Series laser engravers feature laser tubes ranging from 40 watts up to a powerful 60 watts, allowing these engravers to be used on materials ranging from acrylic, aluminum, and ceramic to granite, wood, and glass. Our engravers make it possible to turn out beautifully etched signage, displays, model pieces, customized award plaques, stencils, and much more. Machines includes front and rear pass through doors for larger material.
The commercial and hobby uses for our engravers are nearly endless; be sure to check out some the Samples we have that show the capabilities of our engravers! Make Legacy Laser's your choice for high quality laser engravers. If you have any questions about our machines feel free to contact us. Or Visit our new online forum

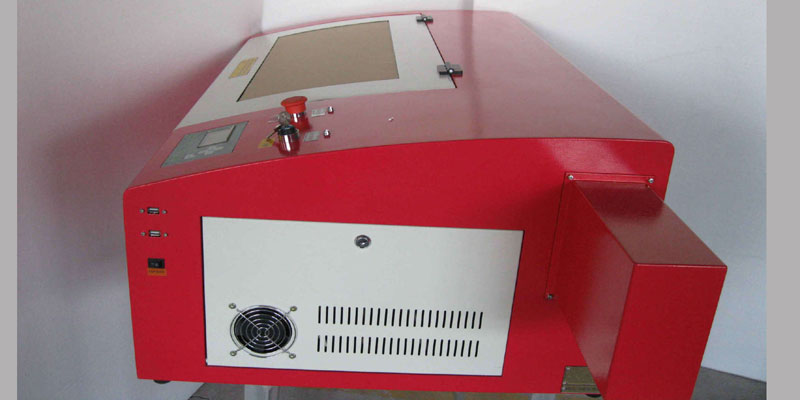

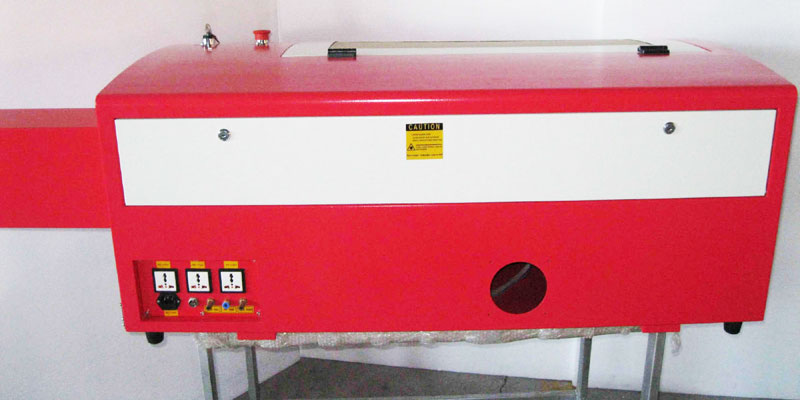

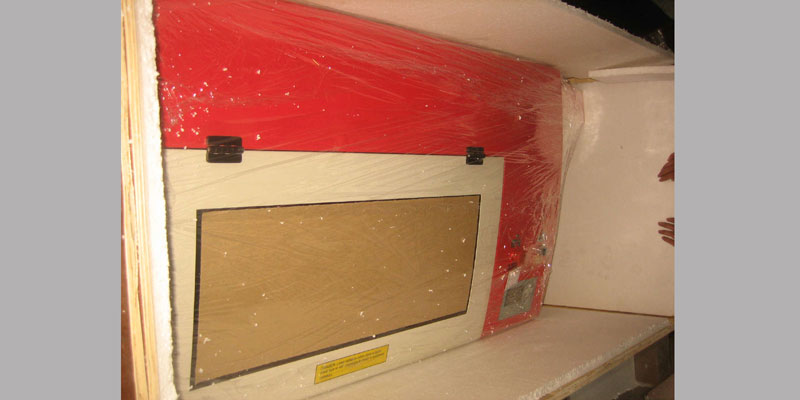

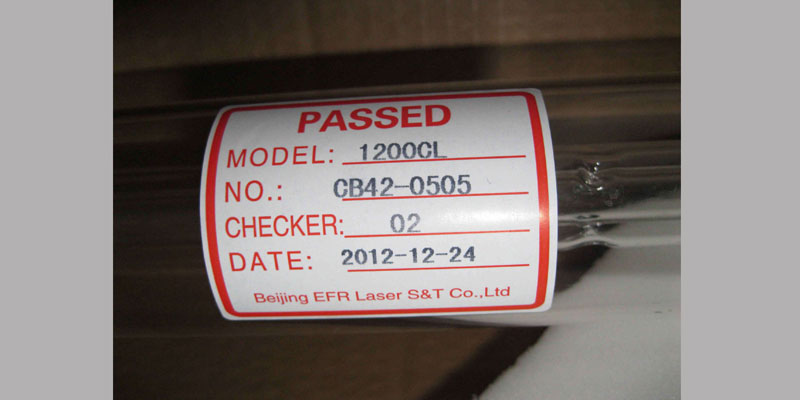

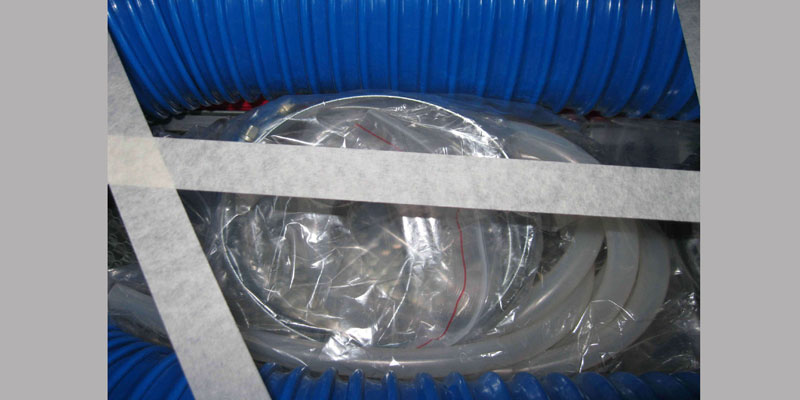

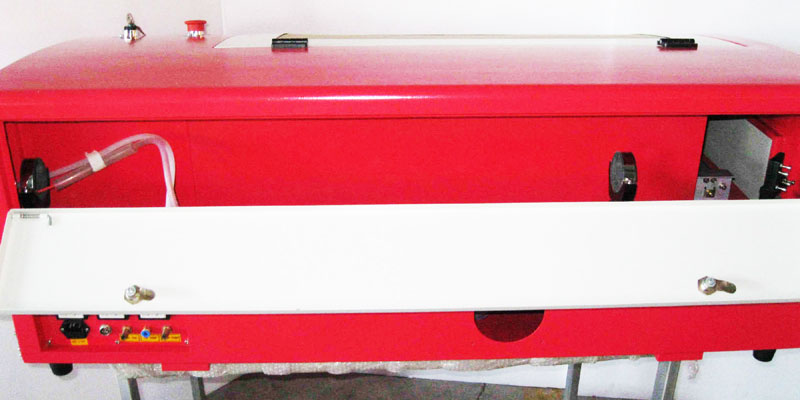

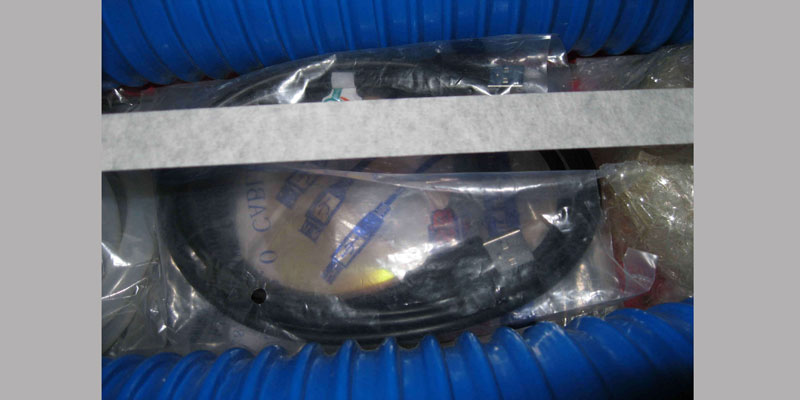

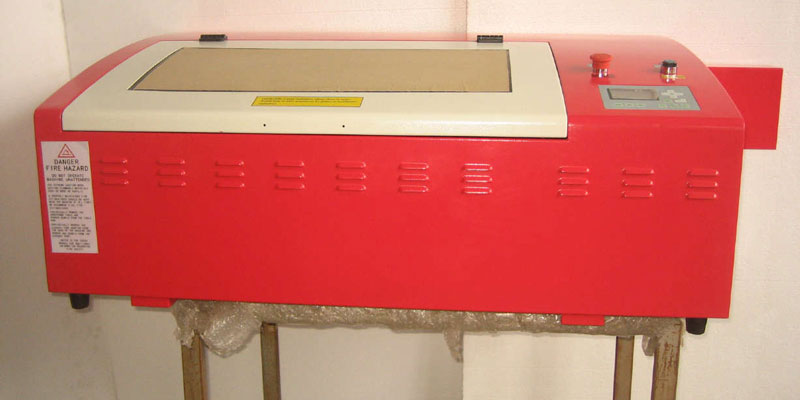

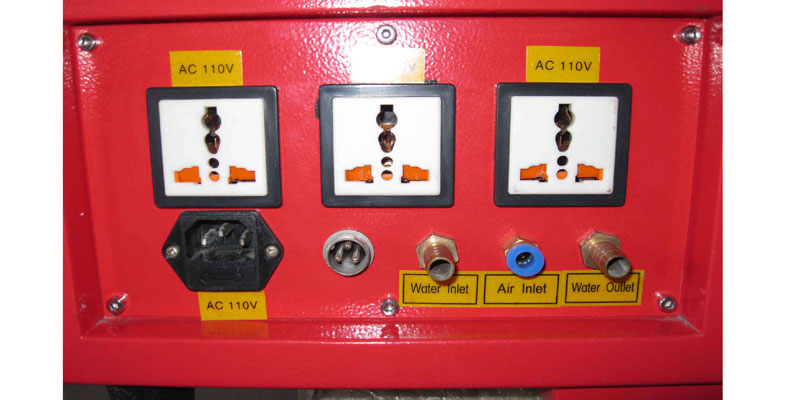

Machine Photo Gallery
300 Series Image 1
300 Series Image 2
300 Series Image 3
300 Series Image 4
300 Series Image 5
300 Series Image 6
300 Series Image 7
300 Series Image 8
300 Series Image 9
300 Series Image 10
300 Series Image 11
300 Series Image 12
300 Series Image 13
300 Series Image 14
300 Series Image 15
300 Series Image 16

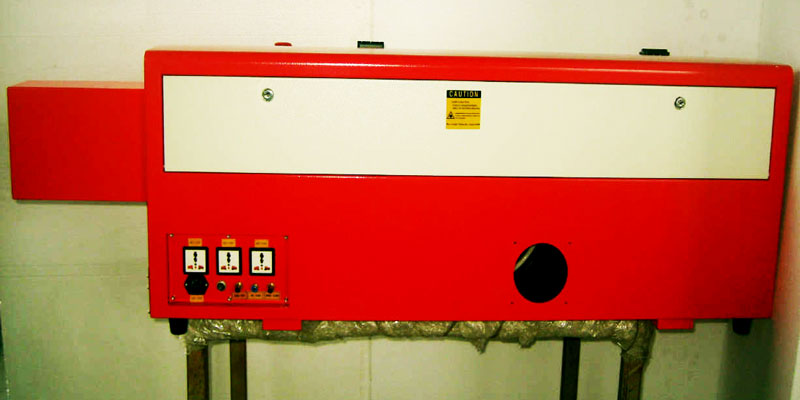

300 Series Image 17
300 Series Image 18
300 Series Image 19
300 Series Image 20
Machine Specifications for our 300 Series Laser Engraver / Cutter
| Engraving / Cutting Area | 23.6 x 11.8" |
| Laser Power | 40W can be upgraded to 60W ask for details |
| Laser Type | Co2 |
| Laser Life | 1,500 - 2,000 hrs. |
| Machine Dimensions | 43 x 24 x 13" |
| Max Material Height | 2.75" by Motorized work table |
| Cutting Depth | 1/8" Acrylic |
| Engraving Speed | 19"/Sec |
| Cutting Speed | 3.9"/Sec |
| Resolution (Dpi) | Up to 1000 Dpi |
| Position Repeatability | .0004" |
| Drive Type | Stepper |
| Power Requirement | Machine will be wired for 110 or 220 (no transformer needed) |
| Work Table Type | Honeycomb Table |
| Cooling Type | Water Cooling System (chiller) |
| Included Software | Laser Cut 5.3 Can import .Bmp, Hpgl, .Plt, .Dst, .Dxf, .Ai |
| Supported Software | Corel X2, X3, X4 ,X5, X6, X7 AutoCad 2000 and Higher |
| Color Based Power Settings | Yes |
| Mixed Mode Operation | Yes, able to engrave & cut within a single file |
| Computer | XP - Win 8 |

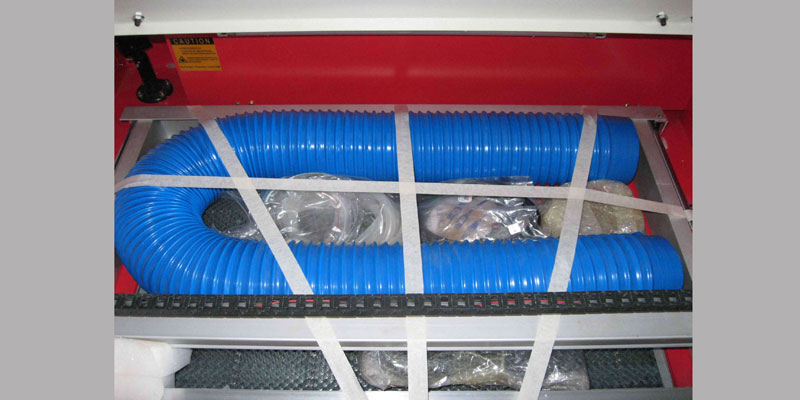

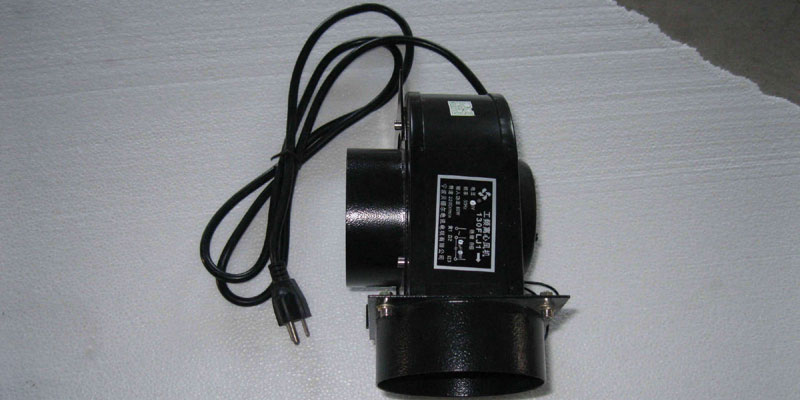

| Included Items | Exhaust |
| Air Assist w/ Compressor | |
| 1 40W Laser Tube | |
| 1 Set of Lens & Mirrors | |
| 1 Water Cooling Unit (chiller) | |
| Red Dot Pointer | |
| Optional | Upgrade to 60w $500 |
| Spare Lens and Mirrors $250 | |
| PhotoGrav $395 | |
| Onsite Setup and Training $1,500 |
