700 Series Laser Engraver / Cutter

  • Finance as low as $153/month.

Our 700 Series Line of laser engravers and cutting equipment offers you the best value coupled with high quality workmanship. Our 700 Series, 700, 800 & 1100 engravers and cutters comes with a manufacturer's Two year warranty plus service and support from our US-based team of experts.

The 700 Series laser engravers feature laser tubes ranging from 40 watts up to a powerful 60 watts, allowing these engravers to be used on materials ranging from acrylic, aluminum, and ceramic to granite, wood, and glass. Our engravers make it possible to turn out beautifully etched signage, displays, model pieces, customized award plaques, stencils, and much more. Machines includes front and rear pass through doors for larger material.

The commercial and hobby uses for our engravers are nearly endless; be sure to check out some of the Samples we have that show the capabilities of our engravers! Make Legacy Laser's your choice for high quality laser engravers. If you have any questions about our machines feel free to contact us. Or Visit our new online forum

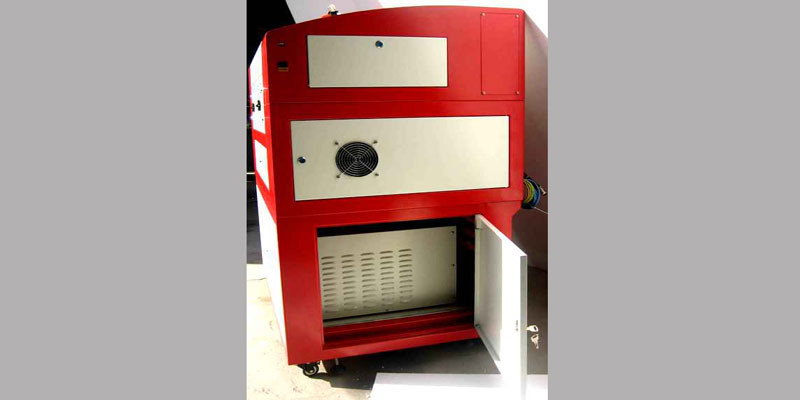

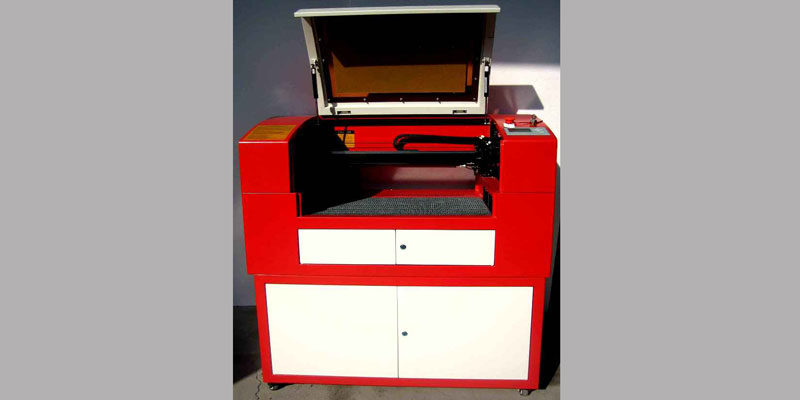

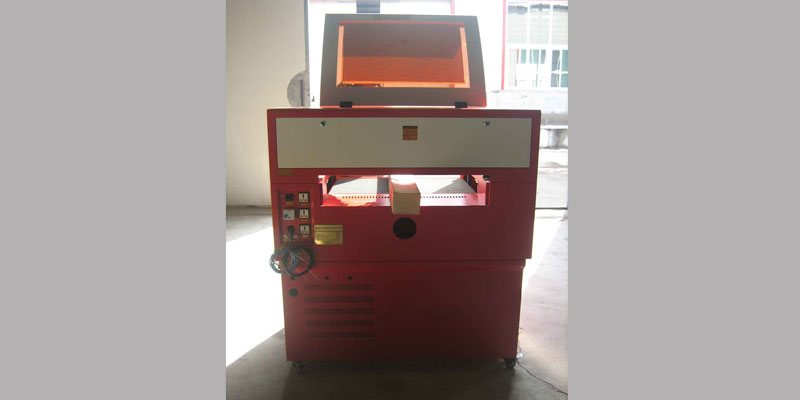

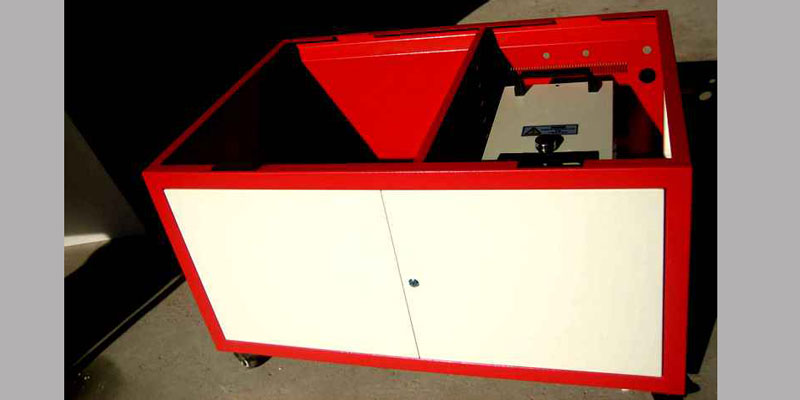

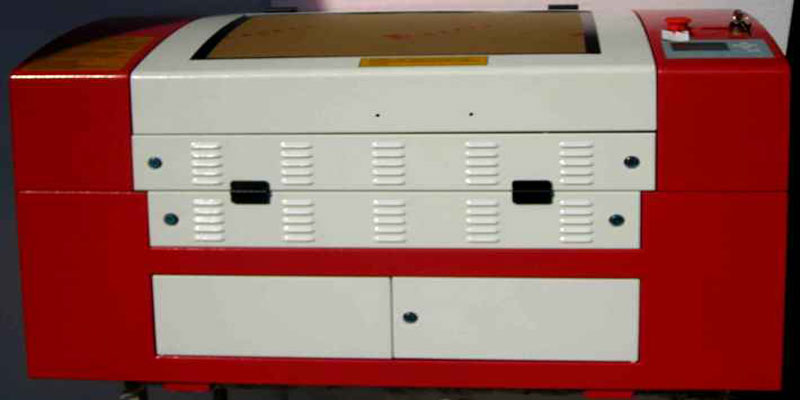

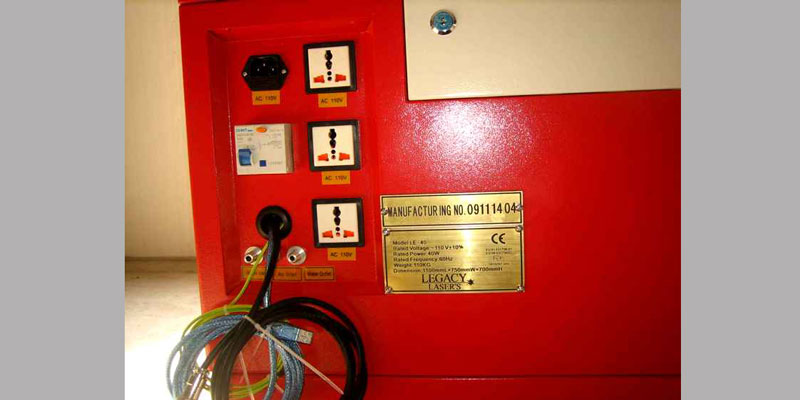

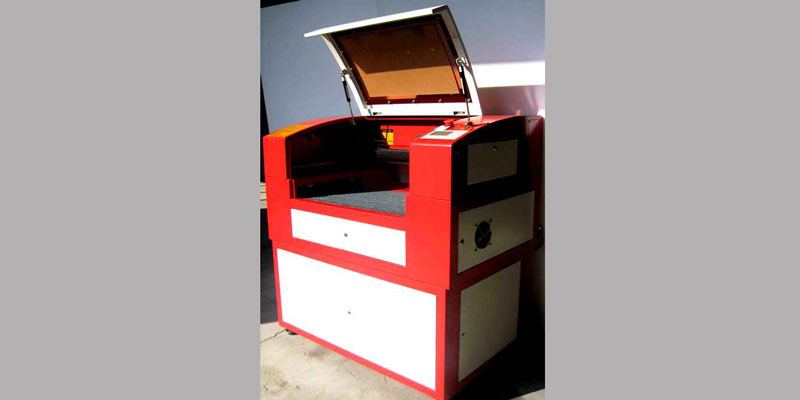

Machine Photo Gallery

700 Series Image 1
700 Series Image 2
700 Series Image 3
700 Series Image 4
700 Series Image 5
700 Series Image 6
700 Series Image 7
700 Series Image 8
700 Series Image 9
700 Series Image 10
700 Series Image 11
700 Series Image 12
700 Series Image 13
700 Series Image 14
700 Series Image 15

Machine Specifications for our 700 Series Laser Engraver / Cutter

Engraving / Cutting Area 26.8 x 15.7"
Laser Power 40W  can be upgraded to 60W ask for details
Laser Type Co2
Laser Life 1,500 - 2,000 hrs.
Machine Dimensions 44.4 x 27.5 x 27.5"
Max Material Height 7.8" by Motorized work table
Cutting Depth 7/16" Acrylic
Engraving Speed 39"/Sec
Cutting Speed 23"/Sec
Resolution (Dpi) Up to 1200 Dpi
Position Repeatability .0004"
Drive Type Stepper
Power Requirement Machine will be wired for 110 or 220  (no transformer needed)

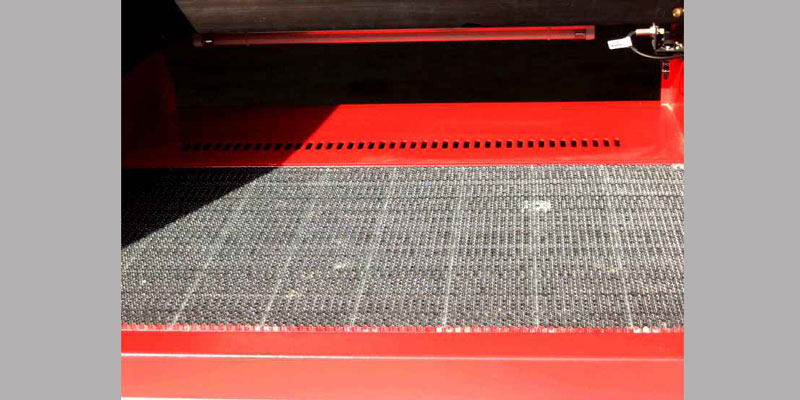

Work Table Type Aluminum Allow or Honeycomb Work Table

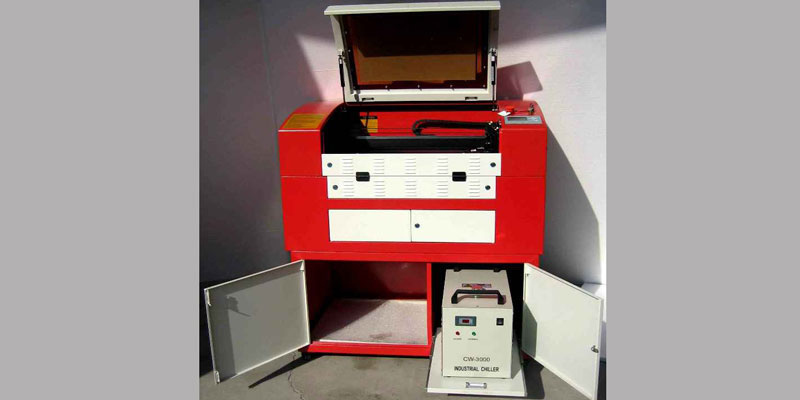

Cooling Type Water Cooling System (chiller)
Included Software Laser Cut 5.3  Can import .Bmp, Hpgl, .Plt, .Dst, .Dxf, .Ai
Supported Software Corel X2, X3, X4 ,X5, X6, X7 AutoCad 2000 and Higher
Color Based Power Settings Yes
Mixed Mode Operation Yes, able to engrave & cut within a single file
Computer XP - Win 8

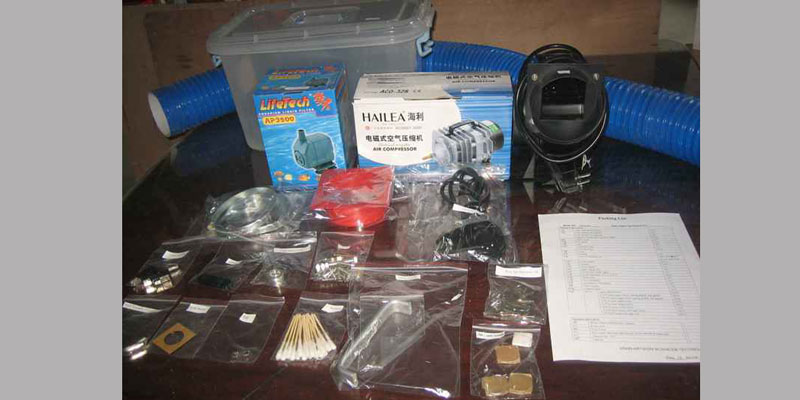

Included Items Exhaust
  Air Assist w/ Compressor
  1  40W Laser Tube
  1 Set of Lens & Mirrors
  1 Water Cooling Unit (chiller)
  Red Dot Pointer
Optional Auto Focus                                 $200
  Spare Lens and Mirrors           $250
  PhotoGrav                                  $395
  Rotary Attachment                   $600
  Onsite Setup and Training      $1,500
