700 Series  40W Laser Engraver / Cutter
with 2 year warranty $6,500
New Print
Driver is in testing phase
CNC Routers
Coming
Soon
Authorized
PhotoGrav
Distributor
[Home] [Products] [Laser Software] [Samples] [Warranty] [Financing] [Forum] [About Us]
[Contact Us]
Crate

Crate
top View

top View
Work Table (2)

Work Table (2)
Honeycomb Table (2)

Honeycomb Table (2)
Chiller compartment

Chiller compartment
Honeycomb Table (1)

Honeycomb Table (1)
Lower Base

Lower Base
photo 045

photo 045
rear view (1)

rear view (1)
rear view (2)

rear view (2)
Removed base (1)

Removed base (1)
Removed base (2)

Removed base (2)
Accessories (1)

Accessories (1)
Side View

Side View
Work Table (1)

Work Table (1)

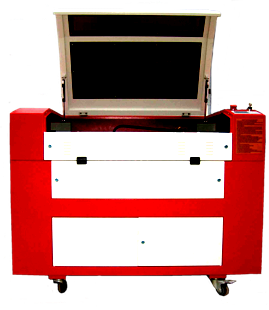

Machine Photos - Click Images to Enlarge
Machine Specifications for
700 Series Laser Engraver / Cutter
Engraving / Cutting Area 26.8 x 15.7"
Laser Power 40W  can be upgraded to 60W ask for details
Laser Type Co2
Laser Life 1,500 - 2,000 hrs.
Machine Dimensions 44.4 x 27.5 x 27.5"
Max Material Height 7.8" by Motorized work table
Cutting Depth 7/16" Acrylic
Engraving Speed 39"/Sec
Cutting Speed 23"/Sec
Resolution (Dpi) Up to 1200 Dpi
Position Repeatability .0004"
Drive Type Stepper
Power Requirement Machine will be wired for 110 or 220  (no transformer needed)
Work Table Type Honeycomb
Cooling Type Water Cooling System (chiller)

Included Software Laser Cut 5.3  Can import .Bmp, Hpgl, .Plt, .Dst, .Dxf, .Ai
Supported Software CorelDraw X3 & X4 , AutoCad 2000, 02, 04  & 06
Color Based Power Settings Yes
Mixed Mode Operation Yes, able to engrave & cut within a single file
Computer PC    w/ XP or Vista    2 Usb ports Required

Included Items Exhaust
  Air Assist w/ Compressor
  1  40W Laser Tube
  1 Set of Lens & Mirrors
  1 Water Cooling Unit (chiller)
  Red Dot Pointer

Bonus** ** 1 Spare 40W Laser Tube


Optional
  Auto Focus                                  $200
  Spare Lens and Mirrors                $250
  PhotoGrav                                   $395
  Rotary Attachment                       $600
  Onsite Setup and Training            $1,500
Our 700 Series Line of laser engravers and cutting equipment offers you the best value coupled with high quality workmanship. Our 500 Series, 700, 800 & 1100 engravers and cutters comes with a manufacturer’s Two year warranty plus service and support from our US-based team of experts.

The 700 Series laser engravers feature laser tubes ranging from 40 watts up to a powerful 60 watts, allowing these engravers to be used on materials ranging from acrylic, aluminum, and ceramic to granite, wood, and glass.
Our engravers make it possible to turn out beautifully etched signage, displays, model pieces, customized award plaques, stencils, and much more.  Machines includes  front and rear pass through doors for larger material.

The commercial and hobby uses for our engravers are nearly endless; be sure to check out some of the Samples we have that show the capabilities of our engravers! Make Legacy Laser’s your choice for high quality laser engravers. If you have any questions about our machines feel free to contact us. Or Visit our new online forum
